Injection molding foldable pipe fitting tee tool/pipe fitting/pipe joint mold

Product Description:Plastic Injection Collapsible Fitting Tee tooling/pipe fittiing/pipe joint mouldLongxiang IntroductionLongxiang Group Limited was established in Guangzhou city in 1998. After over 15 years of hard work, Longxiang has grown to be one of the highest reputable mould maker in China with 120 employees\' 5000 sq. M

Featured Products

Product Description:
Plastic Injection Collapsible Fitting Tee tooling/pipe fittiing/pipe joint mould


Longxiang Introduction
Longxiang Group Limited was established in Guangzhou city in 1998. After over 15 years of hard work, Longxiang has grown to be one of the highest reputable mould maker in China with 120 employees' 5000 sq. Meter working shop.
Up to now, Longxiang has exported about 2400 sets of moulds to 38 countries. The moulds we made include automotive parts (dashboards, inner decorating accessories, etc.), electrical appliances (washing machine, air conditioner,refrigerator, television, etc.), IT industry products (cell phones, computer, etc.), householder products(micro-wave oven, juicer, etc.), office accessories (telephone, printer, etc.) as well as other various of products.
We look forward to participating at the success of your next project.

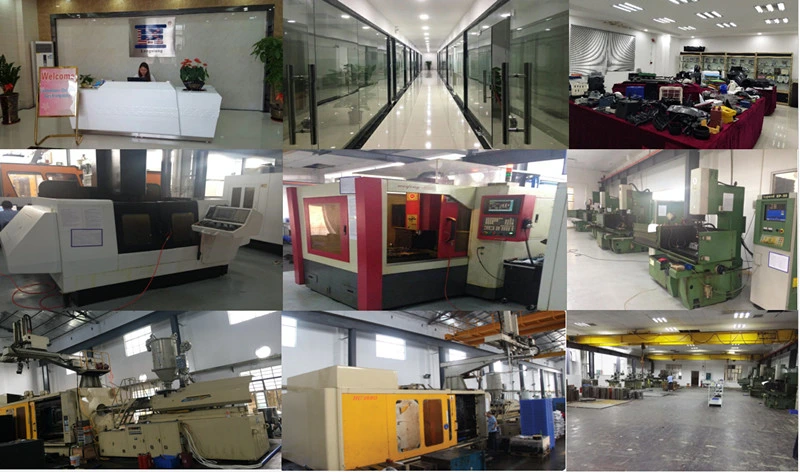

Worshop show
Plastic Injection Collapsible Fitting Tee Tooling/Pipe Fittiing/Pipe Joint Mould

Mold Specification
Mold Material45#,P20 steel, 718, 2738, H13,
NAK80, 2344, 2343, S136, etc .
Mold TypePlastic Injection Molding
Product MaterialABS,PA,PA66+GF,POM,PC,PP,PET,TPE,PVC,HDPE,etc
Mold StandardHASCO, DME, MISUMI, JIS, LKM, etc.
Mold Tooling EquipmentLathe,Milling,Grinder,Drill,CNC,EDM,
Wire cut machine,Punch machine
Injection Mold Machine80T to 2800T
Product Weight50-20000g
GateTypeSide Gate, Sub Gate, Direct Gate,
Hook Gate, Pin Point Gate, etc.
Runner TypeCold Runner or Hot Runner
CavitySingle or Multi cavities
TreatmentHeat treatment and Nitriding,polish ect.
Mold Life45#:50,000 to 100,000 shots
P20:100,000 to 200,000 shots
718: 200,000 to 300,000 shots
H13: 300,000 to 500,000 shots
Lead TimeGenerally mold making will take around 30 days
7-10  day to mass production
PackageWooden packing box for molds
inner packed in opp bags,
outside packed in standard export carton

Mould show
Plastic Injection Collapsible Fitting Tee Tooling/Pipe Fittiing/Pipe Joint Mould

Plastic Injection Collapsible Fitting Tee Tooling/Pipe Fittiing/Pipe Joint Mould

Our team

Plastic Injection Collapsible Fitting Tee Tooling/Pipe Fittiing/Pipe Joint Mould


Tooling Developing Procedure:
  1. Quotation: We need your require clearly
  2. Negotiation: Material, cavity, price, delivery time, payment term, etc.
  3. Order: According your own design or choice our design
  4. DFMEA: Deign failure mold & Effect analysis to reduce risk
  5. Mold design:  2D/3D drawing
  6. Cutting Tooling Notice: After customer approve the mould design will start making mould
  7. Weekly Report: We will update the mold schedule every week
  8. Sample Confirm: Send you sample for conform it, if not satisfied by customer. We modify mould.
  9. Delivery Mold: Delivery mould after customer approve sample and arrange shipment


FAQ
1. Q: Which kind of product can you do?
     A: Plastic injection molding and mass production for plastic parts.
2.  Q: Which kind information need for quotation?
      A: 1) Sample photo with size or 2D/3D design
           2) Product material
           3) The quantity
           4) Runner type, cold or hot
           5) Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on.
3.  Q: I have no 3D drawing, how should I start the new project?
     A: You can supply us a sample or tell me your idea,we will help to finish the  3D drawing design.
4. Q: How long will be the injection mold finished?
     A: Usually it will take about one month to finish the mold.
5. Q: How about the samples?
     A: After mold finished, We will make some samples for you to check as soon as we finish the mold and then deliver the samples for you to check.
6. Q: How about the mould modify?
     A: You can tell us your comment about the samples after you receive them.If there is any dimension different from the drawing,we will modify the mold for free in our side and then make the new samples.
7. Q: How about the proprietary rights of the plastic injection mold?
      A: Customer paid the mould so it all belong to Customer.
8. Q: How about the surface treatment?
    A: Metallization (chrome, gold, silver) / Painting (hand, screen, automated) /Vacuum plating / Lithography
         / Custom texturing/ Hydrographics


Why Choose Longxiang?
  1. Manufacturing and exporting experience for over 20 years. ISO 9001 approved
  2. Products are supplied to over 50 countries.
  3. One-stop service for aluminum profiles, plastic parts, rubber parts, and moulds. Save time and save money for you.
  4. In-house mold design and building capabilities.
  5. No reclaimed material used to ensure high quality.
  6. Keep secret to your idea and your design.
  7. 24 hours (two shifts) / 6 days for production.
  8. Professional design team, mold maker engineer. OEM/ODM service.
  9. Professional QC and R&D teams to assure high quality.
  10. Professional sales team. Good English capabilities and communication skills.
  11. No MOQ.
  12. Prompt delivery. For prototype: 3-7 days. Production orders can be arranged specially to meet customer's urgent demands.
  13. Geographical advantages: within 30 minutes to airport or sea port, near to Hongkong.

Material Specification
Material typeAbbrDescription and typical applications
Acrylonitrile Butadiene StyreneABSOpaque & tough / Phones & computers
PolypropylenePPOpaque & tough / Beer crates
PolystyrenePSClear & Brittle / Toys & model kits
Polystyrene High ImpactHIPSOpaque & tough / Toys & model kits
AcetylPOMNatural & very tough / Gears & bearings
PolycarbonatePCClear and very tough / Street lamp covers & safety
helmets
Plasticized PolyvinylchloridePVCOpaque & flexible / Shoe soles & electrical insulation
Polyamide 6PA6Opaque & very tough / Bushes, bearings & curtain
fittings
Polyamide 6.6PA6.6Opaque, tough and rigid / Housings & handles
Polyamide 12PA12Opaque tough & rigid / Air filters & spectacle frames
Polyethylene low densityLDPEWaxy tough & flexible / Kitchenware & sealing lids
Polyethylene high densityHDPEWaxy tough & stiff / Crates & chair seats
Thermoplastic ElastomerTPE Flexible & tough / Seals & washers
Thermoplastic RubberTPRFlexible & tough / Seals & washers
AcrylicPMMATransparent & Brittle / Lenses & car lights &Display
Polystyrene General PurposeGPPSClear & brittle / Ball point pen barrels
Polyphenylene SulphidePPSBrown & very strong / Guides & bearings
Polyphenylene OxidePPOTough & stable / Electrical parts
Rigid Polyvinyl ChlorideUPVCOpaque & tough / Fascia fittings & guttering
Styrene AcrylonitrileSAN / ASClear & brittle / Table & picnic ware
Polyether SulphonePESClear & tough / Metal replacement parts
Cellulose AcetateCAClear & tough / Spectacle frames
